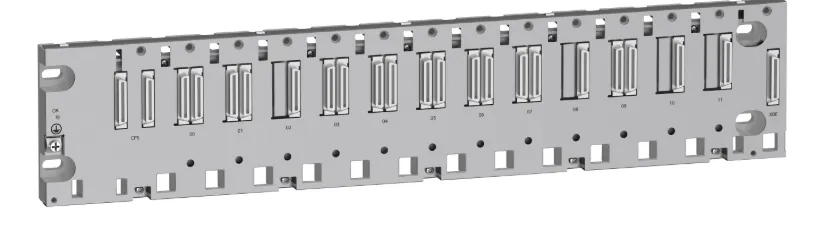

BMEXBP1200 – Modicon X80 12-Slot Ethernet Backplane Rack for M580 & M340

The BMEXBP1200 is a 12-slot Ethernet backplane rack from the Modicon X80 series, designed for Modicon M580 and M340 PACs. It features 8 mixed Ethernet and X-bus connectors along with 4 dedicated X-bus connectors, giving you the flexibility to connect various I/O modules and network components with ease.

This backplane is built for medium to large industrial automation applications, offering stable performance with a long MTBF of 1,500,000 hours. It operates with a current consumption of 164mA at 24V DC and 86mA at 3.3V DC, ensuring efficient power usage.

Key Features of BMEXBP1200

• Model: BMEXBP1200
• 12-slot backplane for M580 and M340 PACs
• 8 Ethernet + X-bus connectors
• 4 X-bus-only connectors
• 164mA at 24V DC / 86mA at 3.3V DC
• MTBF: 1,500,000 hours
• IP20-rated enclosure
• Supports XBE expansion connector
• Compatible with Modicon X80 I/O modules and BMXCPS power supplies

The Backplane Rack dependable and flexible backplane that simplifies large-scale automation setups while reducing maintenance and training costs.
